Model: VSP30-S900W/96V

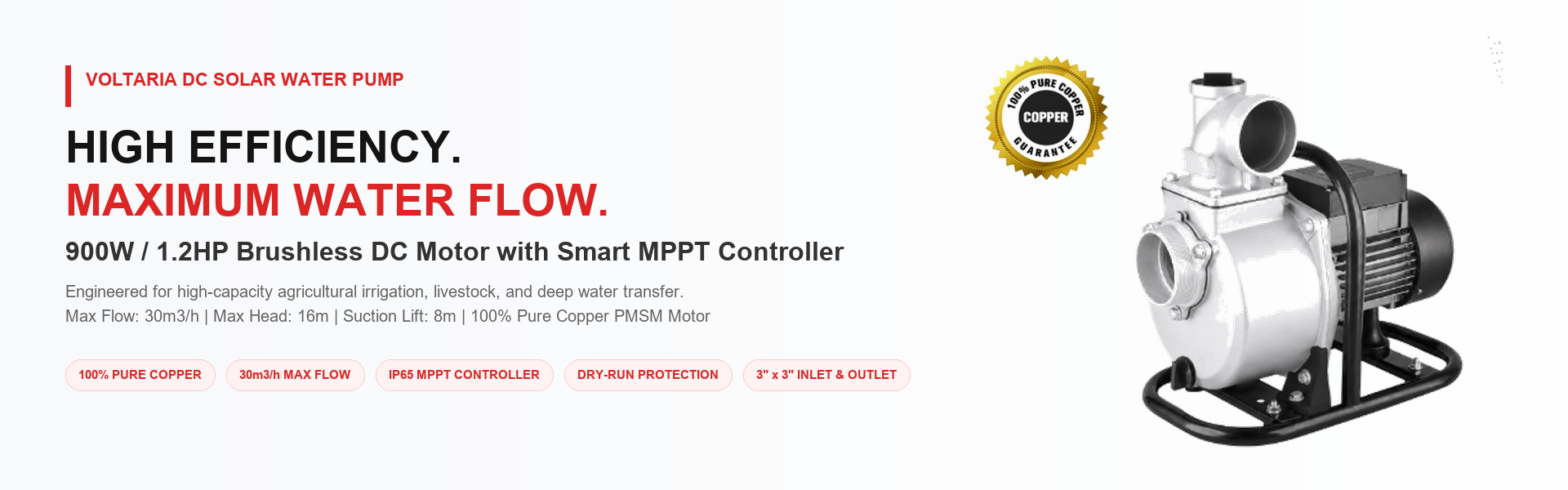

Voltaria VSP30-S900W/96V DC Solar Water Pump
Voltaria VSP30-S900W/96V is a 900W / 1.2HP high-efficiency DC Solar Surface Water Pump powered by an advanced MPPT controller and a 100% pure copper PMSM motor. Delivering a maximum flow rate of 30m³/h with comprehensive dry-run and electrical safety protections, it provides an eco-friendly, fuel-free, and dependable water pumping solution for farms, ranches, and commercial irrigation.
- 100% Pure Copper Winding with High-Torque PMSM Motor
- High Volume Delivery: Max Flow 30m³/h & Max Head 16m
- 900W / 1.2HP Rated Power @ 96V DC High-Efficiency System
- Heavy-Duty 3" × 3" Inlet & Outlet with Cast Iron Impeller
- Smart MPPT Controller with LED Display (IP65 Weatherproof)
- Comprehensive Multi-Guard: Dry-Run, Under-Voltage, Over-Current & Over-Temp Protection
- Solar Panel Requirement: 330W–450W × 3 Pcs
Technical Parameters
| Model | VSP30-S900W/96V |
| Rated Power | 900W / 1.2HP |
| Rated Voltage | 96V DC |
| Max Flow | 30m³/h |
| Max Head | 16m |
| Suction Lift | 8m |
| Inlet & Outlet | 3" × 3" |
| Motor Construction | PMSM Motor (100% Pure Copper Winding) |
| Controller Type | Smart MPPT Controller with LED Display (IP65) |
| Solar Panel Requirement | 330W–450W × 3 Pcs |
| Safety Protections | Dry-Run, Under-Voltage, Over-Current, Over-Temperature |
| Body Materials | Die-Cast Alloy Body, Alloy Motor Housing, Cast Iron Impeller |
| Gross Weight (G.W) | 12 Kg |
| Dimensions (Measurement) | 41 × 26 × 43 cm |
